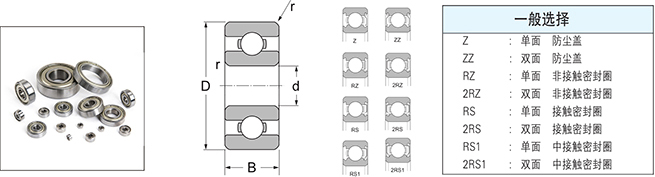

軸承型號
|
內徑 d mm |
外徑 D mm |
寬度W(mm) |
最小 r mm |
額定負荷（N）
|
極速轉速
|
重量 Kg/pc |
|||
| 開放型 | 防塵蓋 |
動負荷Cr
|
靜負荷Cor
|
脂
|
油
|
|||||
|
R144
|
3.175
|
6.35
|
2.38
|
2.779
|
0.08
|
284
|
96
|
67
|
80
|
0.0003
|
|
R2-5
|
7.938
|
2.779
|
3.571
|
0.08
|
558
|
180
|
60
|
67
|
0.0006
|
|
|
R2
|
9.525
|
3.967
|
3.967
|
0.3
|
631
|
219
|
56
|
67
|
0.0013
|
|
|
R2A
|
12.7
|
4.336
|
4.336
|
0.3
|
640
|
227
|
53
|
63
|
0.0025
|
|
|
R155
|
0.3967
|
7.938
|
2.779
|
3.175
|
0.08
|
359
|
150
|
53
|
63
|
0.0005
|
|
R156
|
4.762
|
7.938
|
2.779
|
0.08
|
359
|
150
|
53
|
63
|
0.0004
|
|
|
R166
|
9.525
|
3.175
|
0.08
|
709
|
272
|
50
|
60
|
0.0008
|
||
|
R3
|
12.7
|
3.967
|
4.978
|
0.3
|
1301
|
488
|
43
|
53
|
0.003
|
|
|
R168
|
6.35
|
9.525
|
3.175
|
3.175
|
0.08
|
373
|
172
|
48
|
56
|
0.0006
|
|
R188
|
12.7
|
3.175
|
4.762
|
0.13
|
1082
|
442
|
40
|
50
|
0.0016
|
|
|
R4
|
15.875
|
4.978
|
4.978
|
0.2
|
1480
|
621
|
38
|
45
|
0.005
|
|
|
R4A
|
19.05
|
5.558
|
7.142
|
0.3
|
2336
|
896
|
36
|
43
|
0.009
|
|
|
R1810
|
7.938
|
12.7
|
3.967
|
3.967
|
|
542
|
276
|
40
|
48
|
--
|
|
R6
|
9.525
|
22.225
|
5.558
|
7.142
|
0.14
|
3332
|
1422
|
32
|
38
|
0.014
|
|
R8
|
12.700
|
28.575
|
6.350
|
7.940
|
0.3
|
5400
|
2360
|
30
|
-
|
0.017
|
|
R10
|
15.575
|
34.925
|
7.140
|
8.730
|
0.6
|
5600
|
2910
|
24
|
-
|
0.034
|
|
R12
|
19.050
|
41.275
|
7.940
|
11.11
|
0.6
|
7246
|
4445
|
20
|
-
|
0.046
|
|
R14
|
22.225
|
47.625
|
9.525
|
12.70
|
0.79
|
9625
|
6889
|
28
|
-
|
0.076
|
|
R16
|
25.40
|
50.800
|
9625
|
6889
|
26
|
-
|
0.09
|
|||
|
R18
|
28.575
|
53.975
|
11214
|
8945
|
24
|
-
|
0.09
|
|||
|
R20
|
31.750
|
57.150
|
11214
|
8945
|
22
|
-
|
0.096
|
|||
|
R22
|
34.925
|
63.500
|
11.113
|
14.288
|
14428
|
12120
|
18
|
-
|
0.145
|
|
|
R24
|
38.100
|
66.675
|
|
15760
|
13320
|
15
|
-
|
0.145
|
||
|
軸承型號
|
外形尺寸 |
額定負荷（N）
|
參考重量 Kg |
||||
|
內徑d mm |
外徑D mm |
寬度B mm |
倒角r mm |
動負荷 Cr |
靜負荷 Cor |
||
|
1601
|
4.762
|
17.462
|
7.938
|
0.3
|
1790
|
730
|
0.0070
|
|
1602
|
6.35
|
17.4652
|
7.938
|
0.3
|
1790
|
730
|
0.0065
|
|
1603
|
7.938
|
22.225
|
8.731
|
0.3
|
3290
|
1360
|
0.0120
|
|
1604
|
9.525
|
22.225
|
8.731
|
0.4
|
3330
|
1410
|
0.0105
|
|
1605
|
7.938
|
23.019
|
7.938
|
0.3
|
3330
|
1410
|
0.0160
|
|
1606
|
9.525
|
23.019
|
7.938
|
0.4
|
3330
|
1410
|
0.0150
|
|
1607
|
11.112
|
23.019
|
7.938
|
0.4
|
2690
|
1270
|
0.0300
|
|
1614
|
9.525
|
28.575
|
9.525
|
0.6
|
5110
|
2390
|
0.0000
|
|
1615
|
11.112
|
23.019
|
9.525
|
0.6
|
5110
|
2390
|
0.0280
|
|
1616
|
12.7
|
28.575
|
9.525
|
0.6
|
5110
|
2390
|
0.0260
|
|
1620
|
11.12
|
34.925
|
11.112
|
0.6
|
7450
|
3700
|
0.0500
|
|
1621
|
12.7
|
34.925
|
11.112
|
0.6
|
7450
|
3700
|
0.0480
|
|
1622
|
14.288
|
34.925
|
11.112
|
0.6
|
7450
|
3700
|
0.0460
|
|
1623
|
15.875
|
34.925
|
11.112
|
0.6
|
7450
|
3700
|
0.0410
|
|
1628
|
15.875
|
41.275
|
12.7
|
0.6
|
9390
|
5020
|
0.0720
|
|
1630
|
19.05
|
41.275
|
0.0690
|
||||
|
1633
|
15.875
|
44.45
|
0.0920
|
||||
|
1635
|
19.05
|
44.45
|
0.0900
|
||||
|
1638
|
19.05
|
50.8
|
14.288
|
0.9
|
10060
|
5860
|
0.1450
|
|
1640
|
22.225
|
50.8
|
14.288
|
0.9
|
10060
|
5860
|
0.1330
|
|
1641
|
25.4
|
50.8
|
14.288
|
0.9
|
10060
|
5860
|
0.1210
|
|
1652
|
28.575
|
63.5
|
15.875
|
0.9
|
19460
|
11310
|
0.2110
|
|
1654
|
31.75
|
63.5
|
15.875
|
0.9
|
19460
|
11310
|
0.1930
|
|
1657
|
31.75
|
65.087
|
17.462
|
0.9
|
19460
|
11310
|
0.2320
|
|
1658
|
33.337
|
65.087
|
17.462
|
0.9
|
19460
|
11310
|
0.2100
|
